UHF CB RADIO

Hello and welcome back...UHF CB Radio consists of frequencies between 467.425mhz - 477.400mhz and ranges around 5km in urban areas to 20km in open areas.
Using the repeater system this will increase to 50-100km

As of 2011 80ch UHF CB are now in operation, what do these changes mean?

The frequency allocation extended upwards by 6.25 kHz to accommodate an additional 12.5 kHz channel

All simplex voice channels will transition to 12.5 kHz bandwidth

Telemetry channels 22 & 23 remain unchanged

 Licensing rules regarding repeaters will be relaxed



 Brands that are available for UHF CB Radio include = Uniden, Icom, Benelec, GME and Vertex.

I use and recommend Andrews Communication Systems @ Greystanes NSW Australia for service and best prices

Or visit them online at = ANDREWS COMMUNICATIONS ... Tell them NSW Radio & Communications sent you :)



Current UHF CB band plan (80 Channels) (All Freq are NFM - Narrow Band FM)

Channel Name: Frequency: Purpose: Frequency Spacing:
Channel 1 476.4250 Repeater Channel (Press DUPLEX to use) 12.5 kHz
Channel 2 476.4500 Repeater Channel (Press DUPLEX to use) 12.5 kHz
Channel 3 476.4750 Repeater Channel (Press DUPLEX to use) 12.5 kHz
Channel 4 476.5000 Repeater Channel (Press DUPLEX to use) 12.5 kHz
Channel 5 476.5250 Repeater Channel (Press DUPLEX to use) ('Emergency Use' only) 12.5 kHz
Channel 6 476.5500 Repeater Channel (Press DUPLEX to use) 12.5 kHz
Channel 7 476.5750 Repeater Channel (Press DUPLEX to use) 12.5 kHz
Channel 8 476.6000 Repeater Channel (Press DUPLEX to use) 12.5 kHz
Channel 9 476.6250 Simplex = General Chat Channel 12.5 kHz
Channel 10 476.6500 Simplex (considered as the '4WD and Convoy Channel') 12.5 kHz
Channel 11 476.6750 Simplex ('Call Channel' only) 12.5 kHz
Channel 12 476.7000 Simplex = General Chat Channel 12.5 kHz
Channel 13 476.7250 Simplex = General Chat Channel 12.5 kHz
Channel 14 476.7500 Simplex = General Chat Channel 12.5 kHz
Channel 15 476.7750 Simplex = General Chat Channel 12.5 kHz
Channel 16 476.8000 Simplex = General Chat Channel 12.5 kHz
Channel 17 476.8250 Simplex = General Chat Channel 12.5 kHz
Channel 18 476.8500 Simplex (considered as the 'Caravan and Campers Channel') 12.5 kHz
Channel 19 476.8750 Simplex = General Chat Channel 12.5 kHz
Channel 20 476.9000 Simplex = General Chat Channel 12.5 kHz
Channel 21 476.9250 Simplex = General Chat Channel 12.5 kHz
Channel 22 476.9500 Simplex 25 kHz
Channel 23 476.9750 Simplex 25 kHz
Channel 24 477.0000 Simplex = General Chat Channel 12.5 kHz
Channel 25 477.0250 Simplex = General Chat Channel 12.5 kHz
Channel 26 477.0500 Simplex = General Chat Channel 12.5 kHz
Channel 27 477.0750 Simplex = General Chat Channel 12.5 kHz
Channel 28 477.1000 Simplex = General Chat Channel 12.5 kHz
Channel 29 477.1250 Simplex (considered as the 'Road Channel' for the Pacific Highway) 12.5 kHz
Channel 30 477.1500 Simplex = General Chat Channel 12.5 kHz
Channel 31 477.1750 Repeater Input 12.5 kHz
Channel 32 477.2000 Repeater Input 12.5 kHz
Channel 33 477.2250 Repeater Input 12.5 kHz
Channel 34 477.2500 Repeater Input 12.5 kHz
Channel 35 477.2750 Repeater Input ('Emergency Use' only) 12.5 kHz
Channel 36 477.3000 Repeater Input 12.5 kHz
Channel 37 477.3250 Repeater Input 12.5 kHz
Channel 38 477.3500 Repeater Input 12.5 kHz
Channel 39 477.3750 Simplex = General Chat Channel 12.5 kHz
Channel 40 477.4000 Simplex (considered as the 'Road Channel') 12.5 kHz
Channel 41 476.4375 Repeater Channel (Press DUPLEX to use) 12.5 kHz
Channel 42 476.4625 Repeater Channel (Press DUPLEX to use) 12.5 kHz
Channel 43 476.4875 Repeater Channel (Press DUPLEX to use) 12.5 kHz
Channel 44 476.5125 Repeater Channel (Press DUPLEX to use) 12.5 kHz
Channel 45 476.5375 Repeater Channel (Press DUPLEX to use) 12.5 kHz
Channel 46 476.5625 Repeater Channel (Press DUPLEX to use) 12.5 kHz
Channel 47 476.5875 Repeater Channel (Press DUPLEX to use) 12.5 kHz
Channel 48 476.6125 Repeater Channel (Press DUPLEX to use) 12.5 kHz
Channel 49 476.6375 Simplex = General Chat Channel 12.5 kHz
Channel 50 476.6625 Simplex = General Chat Channel 12.5 kHz
Channel 51 476.6875 Simplex = General Chat Channel 12.5 kHz
Channel 52 476.7125 Simplex = General Chat Channel 12.5 kHz
Channel 53 476.7375 Simplex = General Chat Channel 12.5 kHz
Channel 54 476.7625 Simplex = General Chat Channel 12.5 kHz
Channel 55 476.7875 Simplex = General Chat Channel 12.5 kHz
Channel 56 476.8125 Simplex = General Chat Channel 12.5 kHz
Channel 57 476.8375 Simplex = General Chat Channel 12.5 kHz
Channel 58 476.8625 Simplex = General Chat Channel 12.5 kHz
Channel 59 476.8875 Simplex = General Chat Channel 12.5 kHz
Channel 60 476.9125 Simplex = General Chat Channel 12.5 kHz
Channel 61 476.9375 Simplex 12.5 kHz
Channel 62 476.9625 Simplex 12.5 kHz
Channel 63 476.9875 Simplex 12.5 kHz
Channel 64 477.0125 Simplex = General Chat Channel 12.5 kHz
Channel 65 477.0375 Simplex = General Chat Channel 12.5 kHz
Channel 66 477.0625 Simplex = General Chat Channel 12.5 kHz
Channel 67 477.0875 Simplex = General Chat Channel 12.5 kHz
Channel 68 477.1125 Simplex = General Chat Channel 12.5 kHz
Channel 69 477.1375 Simplex = General Chat Channel 12.5 kHz
Channel 70 477.1625 Simplex = General Chat Channel 12.5 kHz
Channel 71 477.1875 Repeater Input 12.5 kHz
Channel 72 477.2125 Repeater Input 12.5 kHz
Channel 73 477.2375 Repeater Input 12.5 kHz
Channel 74 477.2625 Repeater Input 12.5 kHz
Channel 75 477.2875 Repeater Input 12.5 kHz
Channel 76 477.3125 Repeater Input 12.5 kHz
Channel 77 477.3375 Repeater Input 12.5 kHz
Channel 78 477.3625 Repeater Input 12.5 kHz
Channel 79 477.3875 Simplex = General Chat Channel 12.5 kHz
Channel 80 477.4125 Simplex = General Chat Channel 12.5 kHz



Previous UHF CB band plan (40 channels)

Channel Name: Frequency: Purpose: Frequency Spacing:
Channel 1 476.4250 Repeater Channel (Press DUPLEX to use) 25 kHz
Channel 2 476.4500 Repeater Channel (Press DUPLEX to use) 25 kHz
Channel 3 476.4750 Repeater Channel (Press DUPLEX to use) 25 kHz
Channel 4 476.5000 Repeater Channel (Press DUPLEX to use) 25 kHz
Channel 5 476.5250 Repeater Channel (Press DUPLEX to use) ('Emergency Use' only) 25 kHz
Channel 6 476.5500 Repeater Channel (Press DUPLEX to use) 25 kHz
Channel 7 476.5750 Repeater Channel (Press DUPLEX to use) 25 kHz
Channel 8 476.6000 Repeater Channel (Press DUPLEX to use) 25 kHz
Channel 9 476.6250 Simplex = General Chat Channel 25 kHz
Channel 10 476.6500 Simplex (considered as the '4WD and Convoy Channel') 25 kHz
Channel 11 476.6750 Simplex ('Call Channel' only) 25 kHz
Channel 12 476.7000 Simplex = General Chat Channel 25 kHz
Channel 13 476.7250 Simplex = General Chat Channel 25 kHz
Channel 14 476.7500 Simplex = General Chat Channel 25 kHz
Channel 15 476.7750 Simplex = General Chat Channel 25 kHz
Channel 16 476.8000 Simplex = General Chat Channel 25 kHz
Channel 17 476.8250 Simplex = General Chat Channel 25 kHz
Channel 18 476.8500 Simplex (considered as the 'Caravan and Campers Channel') 25 kHz
Channel 19 476.8750 Simplex = General Chat Channel 25 kHz
Channel 20 476.9000 Simplex = General Chat Channel 25 kHz
Channel 21 476.9250 Simplex = General Chat Channel 25 kHz
Channel 22 476.9500 Simplex (Data Only, No Voice - No Packet) 25 kHz
Channel 23 476.9750 Simplex (Data Only (No Voice - No Packet) 25 kHz
Channel 24 477.0000 Simplex = General Chat Channel 25 kHz
Channel 25 477.0250 Simplex = General Chat Channel 25 kHz
Channel 26 477.0500 Simplex = General Chat Channel 25 kHz
Channel 27 477.0750 Simplex = General Chat Channel 25 kHz
Channel 28 477.1000 Simplex = General Chat Channel 25 kHz
Channel 29 477.1250 Simplex (considered as the 'Road Channel' for the Pacific Highway) 25 kHz
Channel 30 477.1500 Simplex = General Chat Channel 25 kHz
Channel 31 477.1750 Repeater Input 25 kHz
Channel 32 477.2000 Repeater Input 25 kHz
Channel 33 477.2250 Repeater Input 25 kHz
Channel 34 477.2500 Repeater Input 25 kHz
Channel 35 477.2750 Repeater Input ('Emergency Use' only) 25 kHz
Channel 36 477.3000 Repeater Input 25 kHz
Channel 37 477.3250 Repeater Input 25 kHz
Channel 38 477.3500 Repeater Input 25 kHz
Channel 39 477.3750 Simplex = General Chat Channel 25 kHz
Channel 40 477.4000 Simplex (considered as the 'Road Channel') 25 kHz
It is proposed that equipment using 25 kHz spacing (40 channel equipment) be phased out by 2017. The ACMA plan to review this policy in 2016.


REPEATER LOCATIONS

REPEATER-1
BEL01 - Belbora/Wingham
BHI01 - Broken Hill
BIN01 - Bingara
BOB01 - Harden
BRE01 - Brewarrina
BRH01 - Broken Hill
BUN01 - Merriwa
CHR01 - Dorrigo
CBI01 - Kempsey
CHT01 - Charlestown
COR01 - Corowa
DNQ01 - Deniliquin
GRE01 - Grenfell
GUY01 - Guyra
JIN01 -  Jingellic
KGL01 - Kyogie
MBI01 - Moonbi
MRT01 - Wilcannia
MTE01 - Mt Eagle
NEE01 - Dubbo
NYN01 - Nyngan
RYL01 - Rylestone
SYD01 - Hurstville
VMD4  - Ulladulla
WAG01 - Wagga
WGT01 - Walgett


REPEATER-2
BER02 - near Gloucester
BRH02 - near Broken Hill
VMD02 - Nymboida, west of Grafton (replaced CAN02)
CBA02 - Isaacs Ridge - Canberra
EDN02 - Bega/Eden (Bimmil Hill - 6k North of Eden)
GDH02 - Gunnedah
INV02 - Inverell
KHN02 - Khancoban
KOS02 - near Thredbo
KUR02 - Kurrajong Heights
LGW02 - Mt Lambie
MAC02 - Port Macquarie – Mt Cairncross
NBR02 - Wee Waa / Narrabri
NOW02 - Nowra
PAR02 - Parkes
SRC02 - near Byron Bay
VRB02 - Urbenville
WAL02 - Walcha
WAN02 - Wanaaring
WBD02 - Walbundrie
VMB4 - Mount Sugarloaf - Newcastle


REPEATER-3
CAN03 - Orange
CAS03 - Casino
CON3 - Conargo
DUN03 - Dungog
EUC03 - Eucumbene
GIL03 - Braidwood
MDI03 - Murrurundi
MNA03 - Manilla
MOR03 - Moree
MTI03 - Tubramurra Shire
PLO03 - Armidale – Kempsey
RWT03 - Hay
TEN03 - Tenterfield
VMG3 - Razorback Range, South West Sydney


REPEATER-4
ARM04 - Armidale
CBN04 - Coonabaraban
DRK04 - Girard
GLB04 - Goulburn
HAY04 - Hay
MON04 - Kandos - near Mudgee
MUS04 - Muswellbrook
OGU04 - Tamworth
RIV04 - Mt Riverview
ROB07 - Illawarra
SOU04 - Cooma
THA04 - Broken Hill
TUL04 - Tullibigeal
TWH04 - Banora point
VMF04 - Coffs Harbour South
WAN04 - Mt Wandera
WAR04 - Warialda
YNG04 - Young


REPEATER-5
BIN05 - Blue Mountains
BKE05 - Mt Gunderbooka
CAP05 - Tenterfield
CHN05 - Charlestown
COR05 - Corowa
FOR05 - Dorrigo / Bellingen
FRA05 - Bellingen - Dorrigo
GLB05 - Goulburn
JIN05 - Jindabyne
MTS05 - Narromine
MTU05 - S/West Slopes, East River
OXY05 - Bourke
SYD05 - Sydney - Northern
TAM05 - Tamworth
TBO05 - Mt Talbingo


REPEATER-6
BAR06 - Narrabri
BON06 - Bonshaw
COF06 - Sapphire, Coffs Harbour North
COL06 - Oakey
GGG06 - Glengary
LGW06 - Lithgow
MTG06 - Mittagong
MUM06 - Mumbulla Mountain
NAR06 - Narromine
NEW06 - Mount Sugarloaf - Newcastle
ROB06 - Mt Robert
TAB06 - Pretty Gully - Tabulam
TUM06 - Snowy Mountains
WAL06 - Walcha
WEN06 - Tolarno


REPEATER-7
BAL07 - Buckombil Hill - East of Lismore
BOO07 - Booral
BOM07 - Bombala
COW07 - Cowra
GLH07 - Broken Hill
GLI07 - Glen Innes
MIL07 - Milton
NUN07 - Tamworth
PLO07 - Kempsey and Armidale (Off-air May 2009)
SYD07 - Pennant Hills, Sydney
WAL07 - Walcha


REPEATER8
BAT08 - Bathurst
CBA08 - Isaacs Ridge - Canberra
COB08 - Cobar
CON08 - Condobolin
GLE08 - Glen Innes
GRE08 - Gresford
GRF08 - Grafton
MAL08 - Mallanganee
MER08 - Merimbula
MUR08 - Tomewin
NAR08 - Narrandera
TBC08 - Tooleybuc
URA08 - Urala - near Armidale
WAL08 - Walcha
WOY08 - Kariong







Saturday, June 16, 2012

WESTMEAD HOSPITAL

Hello and welcome back... Westmead N.S.W is a hub of medical activity with the main Westmead hospital, The Childrens hospital, Cumberland hospital (Mental health) & Careflight helicopter base.

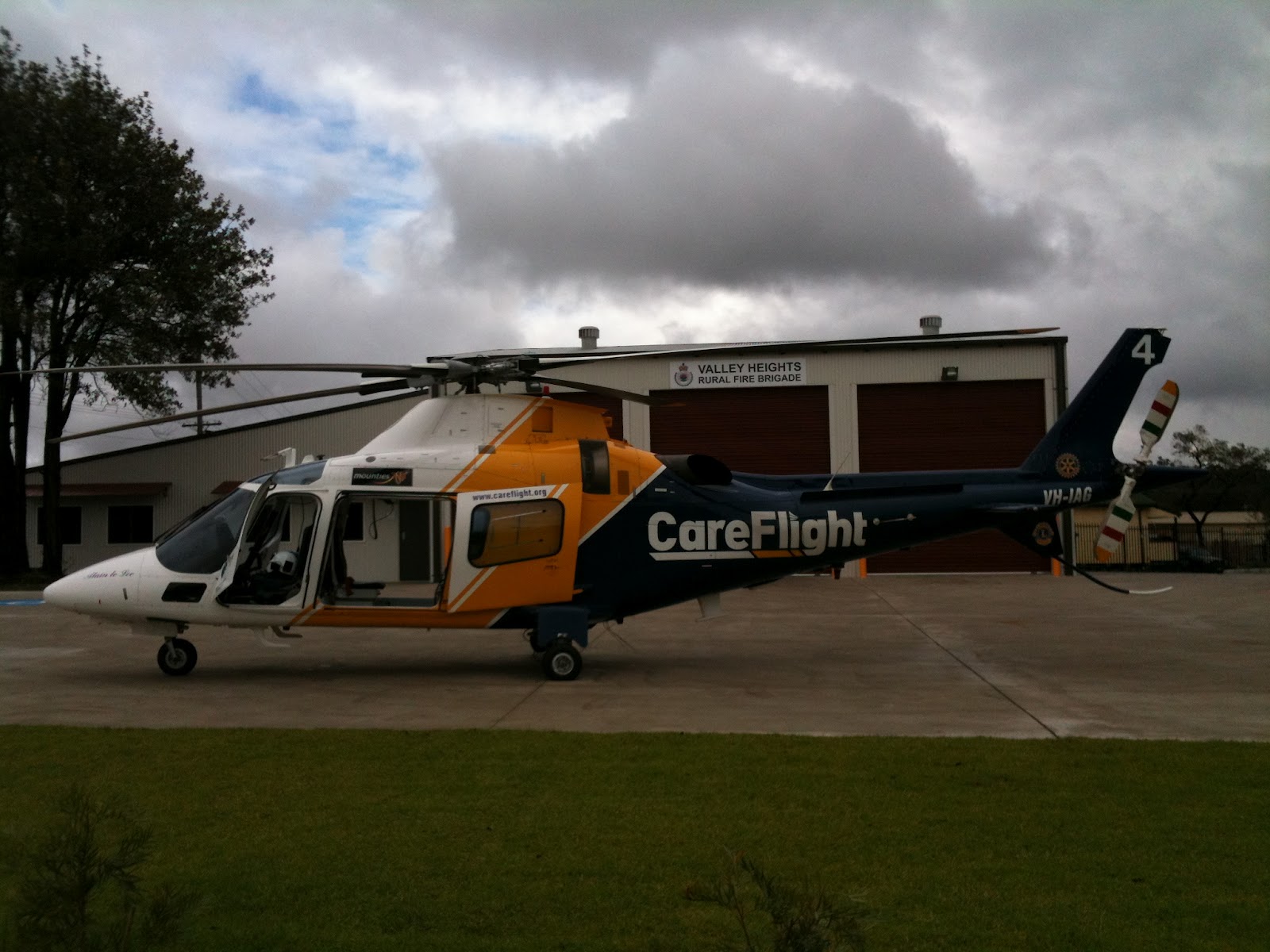

WESTMEAD HOSPITAL / CAREFLIGHT BASE
469.550, 469.625, 469.600, 469.675, 469.650,469.800, 469.850, 469.875, 469.775, 469.750, 469.725, 469.700, 858.0375
The above frequencies are transmit/receive on one channel.

148.1375 = paging ?

124.150 = NSW Emergency Transport Services



450.500
460.800
470.175
488.950
489.500
853.26875
853.45625
928.2125

Old Careflight frequencies = 487.200, 488.900, 488.950, 489.900 (due to cost cutting and lack of funding by our wonderful government, some or all frequencies may not work anymore), If someone can confirm that these frequencies still work, please let me know.. thanks

THE CHILDRENS HOSPITAL
148.1375 = paging?

transmit
463.500
469.475

Old frequencies
487.175, (do these still work..confirm? )



CUMBERLAND HOSPITAL

transmit
486.275
















Careflight cockpit.     (Photos by Michael Bailey NSW)

Careflight various






PLEASE SUPPORT THESE GREAT ORGANIZATIONS WITH A DONATION

http://www.facebook.com/MyCareFlight

http://careflight.org/
