The Digital Network is also known as - APCO P25 Phase 1 network and has more than 27 Government agencies.
## Updated 28/05/2015 - Opera House site added
AGENCY'S USING P25 GRN
- Ambulance Service of NSW
- Fire and Rescue NSW
- NSW Rural Fire Service
- NSW State Emergency Service
- ACT Emergency Services
- Department of Attorney General and Justice
- RailCorp
- Roads and Maritime Services (formally Roads & Traffic Authority and NSW Maritime)
- Sydney Ferries
- Department of Corrective Services
- NSW Department of Juvenile Justice
- National Parks and Wildlife Service
- Ausgrid
- Endeavour Energy
- Hunter Water Corporation
- Sydney Water
- Sydney Catchment Authority
- Sydney Ports Authority
- Central Tablelands County Councils
- Sutherland Shire Council
- Australian Broadcasting Corporation
- Chevra Hatzolah (Jewish Community sponsored and staffed medical response)
NOTE - Most POLICE use a Encrypted Digital transmission and can NOT be monitored.......
Some country police may still use analogue and can be monitored.
NETWORK INFORMATION
The network is a digital 9600 bps Project 25 (commonly referred to as P25 or APCO-25) Phase 1 trunked radio system operating in the UHF band between 403MHz and 420MHz in 12.5 kHz steps.

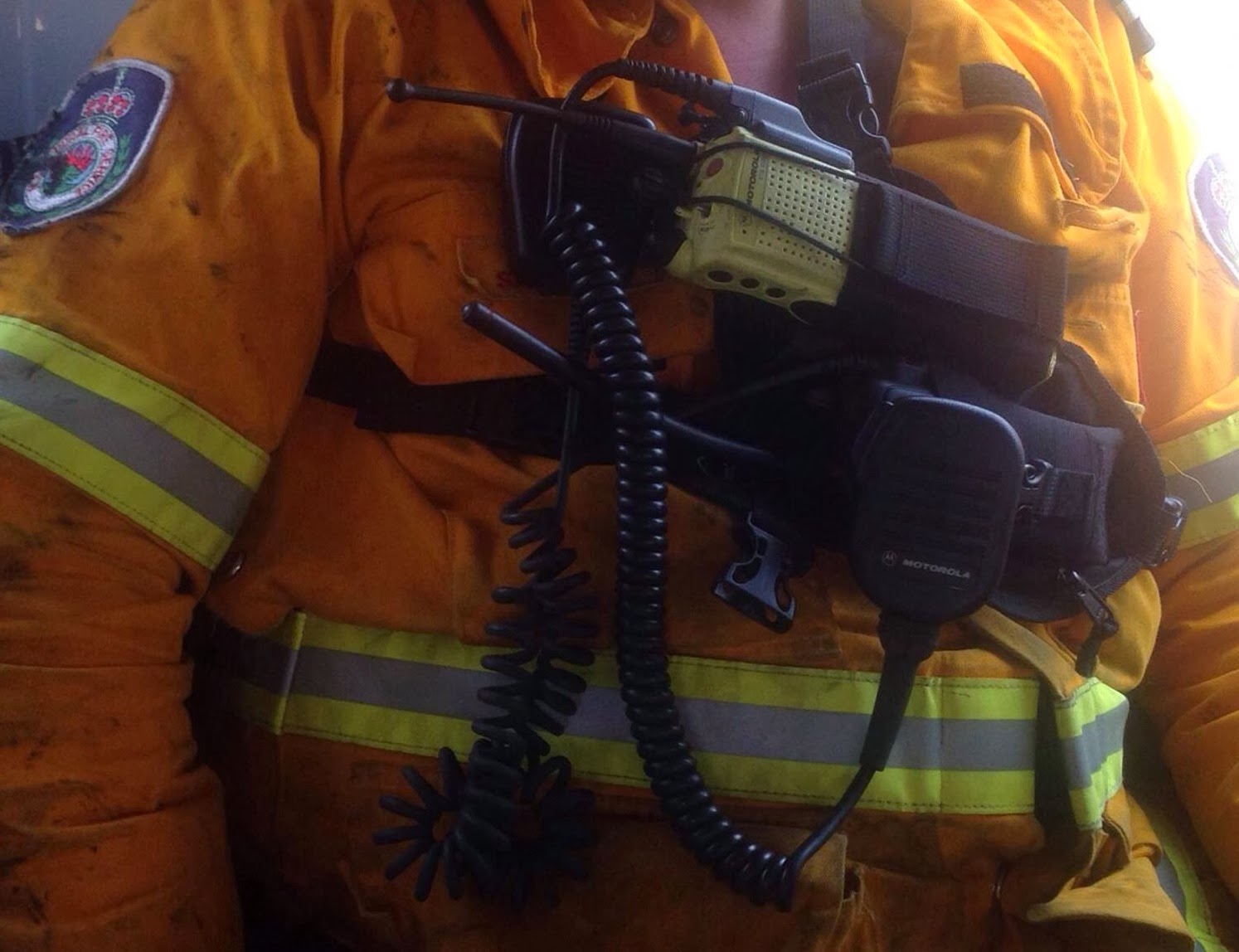

End user equipment is currently supplied mostly by Motorola and consists primarily of the XTL-5000 (mobile) and XTS-5000 (hand-held) two-way radios (although Tait Communications and Simoco radios are also authorized for use). Encryption is supported and used by some agencies on the network.
COVERAGE
SO WHAT DOES THIS MEAN TO SCANNER USERS???

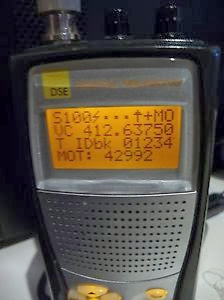

Basically, it means to listen to this network you need to buy a Digital scanner.
You will need to program the radio using the GRN CONTROL CHANNELS (See Below) from a tower in your area.
The radio reads the information from these control chs and decodes it displaying the user 'Talkgroup ID" & audio.
1 or 2 control channels for every tower - C = primary control channels (red)
A = alternate control channels (blue)
You will need to enter both these channels into your scanner when programming.
DIGITAL RADIO RECEIVERS (Scanners)... Available on Ebay, etc
-----------------------------------------------------
AOR = AR8200D - Handheld
UNIDEN = BCD996XT - Desk / Mobile / Vehicle
BCD996T (older version) - Desk / mobile/ vehicle
UBCD396XT - Handheld
UBCD396T (older version) - Handheld
BC-796D - Base / Mobile
RADIO SHACK = PRO-96 - Hand Held
PRO-106 - Hand Held
PRO-18 - Hand Held
GRE = PSR-600 - Base / Mobile (also known as Radio Shack PRO-197)
GRN CONTROL CHANNEL SITES
Locate a site closest to you and enter all the Primary and Alternate frequencies from the one site under P25 section of your scanner
C = Primary Control ch (red)
A = Alternate Control ch(blue)
SYDNEY REGION
--------------------------
Beecroft (Pennant Hills) = 416.88750c, 416.13750a
Belrose (Northern Beaches) = 416.17500c, 416.92500a
Heathcote (Hurstville - Sutherland) = 417.56250c, 417.06250a
Chullora (Bankstown - Greenacre) = 416.25000c, 417.00000a
North Head (Manly - Sydney)= 417.55000c, 416.05000a
Collaroy Plateau (Northern Beaches) = 417.68750c, 419.43750a
Cronulla (Sutherland) = 416.48750c, 417.48750a
Little Bay (Botany Bay - Randwick) = 418.82500c, 419.57500a
Picton (Razorback - Camden - Campbelltown) = 419.6625, 419.625 (Updated 16/05/2019)
Delhi Road (North Ryde) Railway Station = 416.18750c, 416.81250a
Macquarie Park Rail Station (Chatswood - Macquarie Uni) = 416.26250c, 416.51250a
Cross City (Road) Tunnel (Sydney CBD) = 416.26250c, 416.38750a
Lane Cove (Road) Tunnel = 416.26250c, 416.51250a
Eastern Distributor (Road) Tunnel = 413.11250c, 415.05000a
M5 East Freeway = 416.13750c, 416.26250a
Olympic Park Railway Station (Homebush) = 413.11250c, 415.05000a
Miranda Westfield (Hurstville) = 418.52500c, 419.15000a
Horsley Park (Liverpool - Fairfield) = 417.46250c, 415.96250a
North Bondi = 416.95000c, 417.45000a
Homebush Bay (RAS - Showground - Easter Show) = 417.28750c, 416.78750a
Governor Philip Tower (Sydney City) = 416.12500c, 415.62500a, 416.87500a, 417.12500a
Governor Phillip Tower -(Sydney Harbour Tunnel, Bondi Junction Plaza) = 416.30000c, 417.30000a
Crown Castle - BDA Host (Parramatta Westfield, Blacktown Westfield, Penrith Plaza, Parramatta Justice) = 417.51250c, 416.26250a
Warringah Mall (Brookvale) = 416.47500c, 417.47500a
Green Square Railway Station (under junction of Botany Road, Bourke Road and O'Riordan Street) = 415.05000c, 413.10000a
International Airport Railway Station (Host site for Wolli Creek and Domestic Airport Railway Stations) = 413.11250c, 415.11250a
Town Hall Railway Station (Sydney CBD) = 416.13750c, 416.26250a
Redfern Railway Station (Central Station, Kogarah Station, Hurstville Station, Sutherland Station) = 416.18750c, 416.81250a
Kings Cross Railway Station = 416.18750c, 416.81250a
Wynyard Railway Station ( Host Site to Circular Quay Station) = 416.18750c, 416.81250a
St James Railway Station ( Host Site to Martin Place Station) = 416.13750c, 416.26250a
Museum Railway Station = 416.18750c, 416.81250a
North Sydney Railway Station = 416.13750c, 416.26250a
Bondi Junction Railway Station = 416.18750c, 416.81250a
Edgecliff Railway Station = 416.13750c, 416.26250a
Opera House = 422.37500c, 422.25000a
BLUE MOUNTAINS
----------------------------
Glenbrook (Lower Mountains - Penrith) = 416.48750c, 417.48750a
Katoomba (Explorers Tree Hill) = 416.53750c, 416.03750a, 417.03750a, 417.53750a
Mt Tomah (Mid Blue Mountains) = 417.43750c, 416.43750a, 417.93750a
Lithgow (Hassans Walls - Portland) = 416.30000c, 417.30000a
Lithgow (Mt Lambie) = 416.26250c, 417.26250a
Oberon (Falls Hill) = 417.46250c, 416.71250a
Kurrajong Heights (Richmond - Springwood = 416.81250c, 413.18750a, 416.18750a
HAWKESBURY
---------------------
Wisemans Ferry (Simpsons Hill - Hawkesbury ) = 417.55000c, 416.05000a
CENTRAL COAST
-------------------------
Wyee (Wyong - Toronto) = 416.48750c, 417.48750a
Gosford (Mt Penang - Central Coast) = 417.45000c, 416.95000a
Cowan (Central Coast) = 416.28750c, 416.78750a
Bilgola Plateau (Central Coast) = 416.26250c, 417.26250a, 417.51250a
Gosford (Mt Elliot - Woy Woy - The Entrance) = 416.41250c, 419.16250a
Bateau Bay (Wyong - Lake Macquarie) = 417.43750c, 417.93750a
Copacabana (Central Coast - Gosford) = 416.53750c, 417.53750a
Umina (Gosford) = 418.65000c, 419.77500a
Wyong (Bumble Hill - Watagan Nat Park) - 416.31250c, 417.31250a
Kulnura (Boomerang Ridge - Mangrove Mountain) = 415.96250c, 417.46250a
NORTH WESTERN NSW
-----------------------------------
Nyngan (Nth Western NSW) = 416.18750c, 417.18750a
Brewarrina (Nth Western NSW) = 416.30000c, 417.30000a
Bourke (Mt Oxley - Nth Western NSW) = 416.48750c, 417.48750a
Coonamble (Nth Western NSW) = 416.48750c, 417.48750a
Walgett (Trilby Park - Nth Western NSW) = 416.18750c, 417.18750a
Dunedoo (Broombee Mountain - Nth Western) = 416.30000c, 417.30000a
Warren (Nth Western NSW)- 417.41250c, 416.16250a
Lightning Ridge (Nth Western NSW) = 416.87500c, 417.37500a
Collarenebri (Nth Western NSW) = 417.53750c, 416.16250a
Coonabarabran (Bingie Grumble - Nth Western NSW) = 416.32500c, 416.57500a
Cobar (Cobar City -Nth Western NSW) = 416.30000c, 417.30000a
Dubbo (Buninyong Hill - Nth Western NSW) = 416.37500c, 418.67500a
Coonabarabran (Needle Mountain -South West of Coonabarabran) = 416.13750c, 416.88750a
Gilgandra (North Western NSW) = 416.47500c, 417.47500a
Baradine (North of Coonaburabran)= 416.25000a, 417.00000a (No Primary Control Freq)
Tamworth (Bald Hill - Northern NSW) - 416.47500c, 417.47500a
Narrabri (Kapatur - Mt Dowe - 42 km East of Narrabri) = 417.30000c, 416.80000a
Bourke (CBD - North Western NSW) = 416.47500c, 417.47500a
CENTRAL WEST NSW
---------------------------------
West Wyalong (Central West) = 416.18750c, 417.18750a
Cobar (Mt Boppy - East of Cobar) = 416.48750c, 417.48750a
Cowra (Bellevue Hill - Central West) = 416.53750c, 417.33750a
Condobolin (Hospital Hill - Central West) = 417.47500c, 416.10000a
Lake Cargelligo (Brown Mountain - Central West) = 416.95000c, 417.45000a
Parkes (Mt Coonambro - Central West) = 417.30000c, 416.30000a
Wellington (Mt Wellesley -South West of Wellington) = 417.18750c, 416.18750a
Wellington (Mt Bodangora -Nor'nor'east of Wellington ) = 416.92500c, 417.31250a
Dubbo (Sappa Bulga Mountain -22 km South West of Dubbo) = 416.29750c, 417.28750a
Kandos (Cumber Melon Mtn, Baldy Peak - Central West) = 416.13750c, 416.88750a
Mudgee (Magpie Hill - Gulgong - Central West) = 416.48750c, 417.23750a
Tottenham (Central West) = 416.46250c, 417.46250a
Sofala (Monkey Mountain - Central West) = 416.92500c, 418.92500a
Grenfell (Warraderry Range - Central West) = 416.92500c, 417.42500a
Bathurst (Mt Panorama - Central West) = 416.12500c, 416.87500a
Orange (Mt Canobolas - Central West) = 417.00000c, 416.25000a
Canowindra (Cowra - Central West)= 416.13750c, 416.88750a
Peak Hill (Central West) = 416.48750c, 417.48750a
Blayney (Central West)= 416.95000c, 417.45000a
HUNTER REGION NSW
---------------------------------
Singleton (Obanvale - Branxton - Hunter Region) = 416.95000c, 416.20000a
Murrurundi (Mt Helen - Scone - Quirindi - Hunter Region) = 416.13750c, 416.88750a
Parkville (Black Mtn - North of Scone ) = 416.08750c, 417.08750a
Merriwa (Banderra Downs Hstd - Hunter Region) = 416.07500c, 417.07500a
Newcastle (Mt Sugarloaf - 25 km West of Newcastle CBD ) = 416.18750c, 417.56250c
Newcastle (New Lambton Heights - West of Newcastle CBD) = 416.25000c, 417.75000a
Cessnock (Brokenback Range - Hunter Region) = 416.12500c, 416.87500a
Port Stephens (Gan Gan Hill - Hunter Region) = 416.13750c, 416.88750a
Muswellbrook (Mt Arthur - 32 Km SW of Muswellbrook -Hunter Region) = 416.17500c, 416.92500a
Merriwa (Wappinguy - Hunter Region) = 416.18750a, 417.18750a (No Prim Cont Freq)
Howes Valley (Little Darkey - Putty Road - Hunter Region) = 416.46250c, 417.26250a
Dungog (Mt Richardson - Hunter Region) = 416.11250c, 417.11250a
Bulahdelah (Cabbage Tree Mtn - approx 18 Km N of Bulahdelah) = 416.17500c, 416.92500a
SOUTH COAST - SOUTH EAST - ILLAWARRA NSW
-----------------------------------------------------------------------
Vincentia / Jervis Bay (Nowra - South Coast) = 416.25000c, 417.00000a
Milton (Little Forest Trig - Ulladulla - South Coast) = 416.11250c, 416.86250a
Termeil (Boyne Trig - Ulladulla - Batemans Bay - South Coast) = 417.45000c, 416.95000a
Mt Cowangerong (Southern Highlands) = 416.52500c, 418.52500a
Cooma (Mt Gladstone - Berridale - Sth East NSW) = 416.13750c, 416.88750a
Yass (Mundoonen - East of Yass - Sth East NSW) = 416.26250c, 417.26250a
Wollongong (Berkeley Tops -Illawarra ) = 416.26250c, 417.26250a
Robertson (Mt Murray - Moss Vale - Bowral) = 416.41250c, 419.16250a
Mittagong (Mt Gibralter) = 416.95000c, 417.45000a
Freestone (near Marulan - Bundanoon - South Eastern NSW) = 416.17500c, 416.92500a
Goulburn (Mt Gray) = 416.12500c, 416.87500a
Lake George (Chaton Ridge - South Eastern NSW) = 416.13750c, 416.88750a
Kiama (Saddleback Mountain -Illawarra ) = 416.18750c, 417.43750a
Bookham (Black Trig - Yass - South Eastern NSW) = 416.17500c, 416.92500a
Queanbeyan (Mt Jerrabomberra - Sth Eastern NSW) = 416.25000c, 416.75000a
Nowra (Mt Cambewarra -Illawarra ) = 416.07500c, 416.32500a
Batesman Bay (Round Hill - Moruya - Sth Eastern NSW) = 416.18750c, 417.18750a
Moruya (Mt Wandera - Sth Eastern NSW) = 416.08750c, 417.08750a
Bodalla (Princes Highway - Maruya -Narooma) = 416.48750c, 417.48750a
Narooma (Buckeridge Lookout - Sth Eastern NSW) = 416.17500c, 416.92500a
Cobargo (Peak Alone - Sth Eastern NSW) = 416.41250c, 417.41250a
Broga (Mount Mumbulla - Bega - Sth Eastern NSW) = 417.47500c, 416.97500a
Eden (Bimmil Hill - Pambula - Sth Eastern NSW) = 416.18750c, 417.43750a
Jerrawangala (Cudmirrah Trig - Milton - Sth Eastern NSW) = 416.15000c, 416.90000a
Captains Flat (Mt Cronin - Sth Eastern NSW) = 416.92500c, 416.42500a
Braidwood (Mt Gillamatong - Sth Eastern NSW) = 416.26250c, 417.26250a
Bembroka (Snowy Mtn Highway - Sth Eastern NSW) = 416.95000c, 417.20000a
Bega Valley (Brown Mountain - Sth Eastern NSW) = 416.25000c, 417.00000a
Nimmitabel (Hudsons Peak - Cooma - Berridale - Sth Eastern NSW) = 416.17500c, 416.92500a
Merimbula (Tura Beach - Bega - Eden - Sth Eastrn NSW) = 416.28750c, 417.53750a
Ulladulla (Water Reservoir - Milton - Sth Eastrn NSW) = 416.30000c, 417.30000a
Bungendore (Kings Highway - Sth Eastrn NSW) = 415.05000c, 419.80000a
Wollongong (Mt Kiera - Port Kembla - Picton - Illawarra) = 417.55000c, 416.05000a
Robertson (Knights Hill - Berry - Moss Vale - Kiama - Illawarra) = 417.92500c, 415.52500a
Wollongong (Maddens Plains - Campbelltown -Sutherland - Illawarra) = 416.30000c, 417.30000a
CANBERRA (ACT)
--------------------------
Canberra (Black Mountain Tower - Woden Valley) = 416.70000c, 419.07500a
Canberra (One Tree Hill - 18 km NbyW of Parliament House) = 416.33750c, 417.08750a
Canberra (Mt Ainslie - 5 km NEbyN of Parliament House) = 416.46250c, 417.46250a
Canberra (Tuggeranong Hill - 16 km S of Parliament house) = 417.10000c, 419.60000a
Canberra (Mt Stromolo - 10.5 km W of Parliament House ) = 416.11250c, 416.86250a
Canberra (Bulls Head - 29 km WSW of Parliament House) = 413.18750c, 419.18750a
Canberra (Mt Ginini - 40 km SW of Parliament House) = 416.48750c, 417.48750a
Canberra (Mt Tennent - 28 km SW of Parliament House) = 416.30000c, 417.30000a
GRN USER CODES = CLICK HERE
UPDATE ***** Download NSW GRN database for Free Here = http://scanradionsw.blogspot.com.au/2016/07/download-nsw-grn-file.html
PLEASE, Don't forget to shout me a coffee (see link top right corner).. Any amount big or small is much appreciated and it keeps this site happening :)
For a more in depth listing visit - RADIOREFERENCE.COM
